Radioddity QT60 Pro 10 Meter Mobile Ham Radio SSB/AM/FM/PA 60W, NOAA Alert

$77.70

Dual Watch

Name: Radioddity QT60 Pro 10 Meter Mobile Ham Radio SSB/AM/FM/PA 60W, NOAA Alert
Brand: My Store
SKU: B0CFQT4KWB
Price: 77.70 USD
Availability: InStock

Dual watch feature (âDWâ icon) enables simultaneous monitoring of two channels, preventing missed transmissions and enhancing communication.

NOAA Channel Monitor & Alert

Built-in NOAA feature offers real-time weather updates on seven WX channels for outdoor safety.

Microphone Gain

Offering 36 levels of adjustability, this feature allows you to fine-tune the microphone sensitivity to your liking.

SSB/AM/FM/PA Mode

This radio offers FM for clear audio, AM for long-range, SSB (LSB & USB) for voice modulation, and PA mode for public addressing.

CTCSS/DCS

It lets users set specific codes, allowing only those with correct credentials to access their channel, ensuring secure and confidential communication

SWR & Voltage Protection

It safeguards your radio from damage due to improper antenna installation and voltage fluctuations, ensuring longevity and reliability.

Six frequency levels

100Hz, 1KHz, 5KHz, 10KHz, 100KH, and 1MHz offer full control over your communication. Customize these settings via PC programming for max flexibility.

TX & RX Noise Reduction

Fine-tuning across five levels ensures clear communication and message clarity, even in high-noise environments.

TRANSMITTER

Power Output	AM PEP: 60W / FM: 50W / SSB: 60W(PEP)
Drain	10A (with modulation)
Modulation	AM/FM/USB/LSB
Intermodulation Distortion	SSB: 3rd order, more than -25dB; 5th order, more than -35dB
SSB Carrier Suppression	55dB
Unwanted Sideband	50dB
Frequency Response	AM/FM: 300 to 3000 Hz SSB: 450 to 2500Hz

Output Impedance	50ohms, unbalanced
Frequency Range	28.000-29.700MHz (Programmable)
Frequency Band	A/B/C/D/E/F/G/H/I ; Frequency Control: Phase-Locked-Loop Synthesizer
Channel	40 channels (programmable) in each band
Frequency Step/Tolerance	100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz / Â±5.00ppm
Antenna Connector	UHF, SO239

RECEIVER

Sensitivity	SSB: 0.25Î¼V for 10dB(S+N)/N at greater than 1/2 watt of audio output AM: 1.0Î¼V for 10dB(S+N)/N at greater than 1/2 watt of audio output FM: 1.0Î¼V for 20 dB (S+N)/N at greater than 1/2 watt of audio output
Adjacent-Channel Selectivity	AM/FM: 60dB; SSB: 70dB
Image Rejection	More than 65dB
IF Frequency	AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
RF Gain Control	45dB adjustable for optimum signal reception
Automatic Gain Control(AGC)	Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt
Squelch	Adjustable; threshold less than 1.0Î¼V. Automatic Squelch Control(only AM/FM)1.0Î¼V
Audio Output Power	3 watts into 8 ohms

Frequency Response	AM/FM: 300 to 3000Hz; SSB: 450 to 2500Hz
Built-in Speaker	8 ohms, round.
External Speaker(Not Supplied)	8 ohms; disables internal speaker when connected

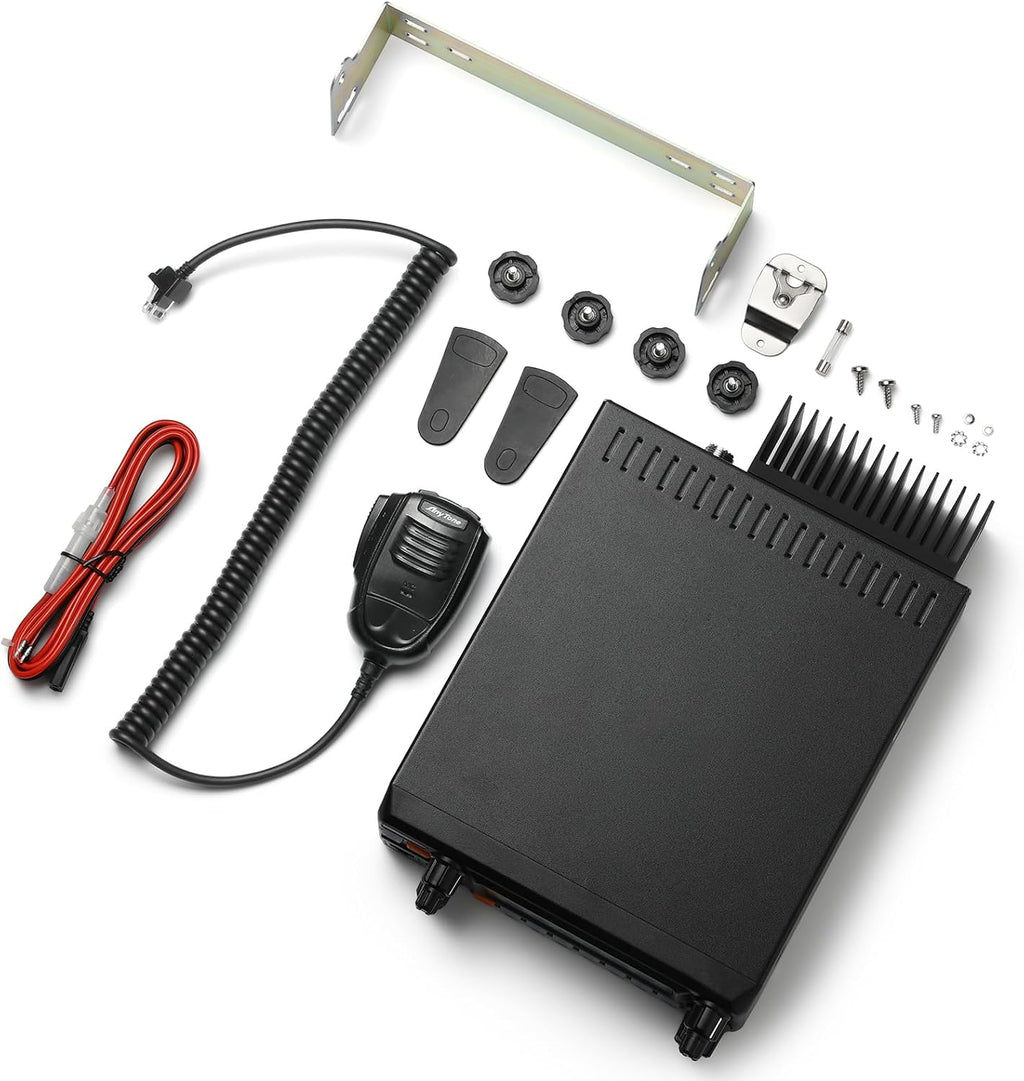

Whatâs in the box?	1 x QT60 Pro Radio 1 x Detachable Microphone 1 x Mounting Bracket 1 x Microphone Hanger 1 x Power Cable 1 x Spare Fuse(10A, 125V) 2 x Non-slip Mat 2 x Screw for Bracket 2 x Pad for Bracket 4 x Adjusting Screw 2 x Self-tapping Screw 2 x Pad
Temperature Range	-20â to +50â
Voltage	13.8V
Dimensions (inches)	12(L) x 0.8(W) x 2.36(H)
WX Channels	162.400MHz, 162.475MHz, 162.425MHz, 162.450MHz, 162.500MHz, 162.525MHz, 162.550MHz

Comparison with Other 10M Radios

	QT60 Pro	QT80	QT40	Other 10M Radio Buying Options
Customer Reviews	178	220	164	â
Price	$259.00	$299.00	$199.99	â
Power	PEP 60W	PEP 80W	PEP 40W	PEP 40W
SSB	â	â	â	â
Screen	LCD	LCD	None	None
RX & TX Noise Reduction	â	â	â	â
CTCSS/DCS	â	â	â	â
NB filter	â	â	â	â
Dual Watch	â	â	â	â

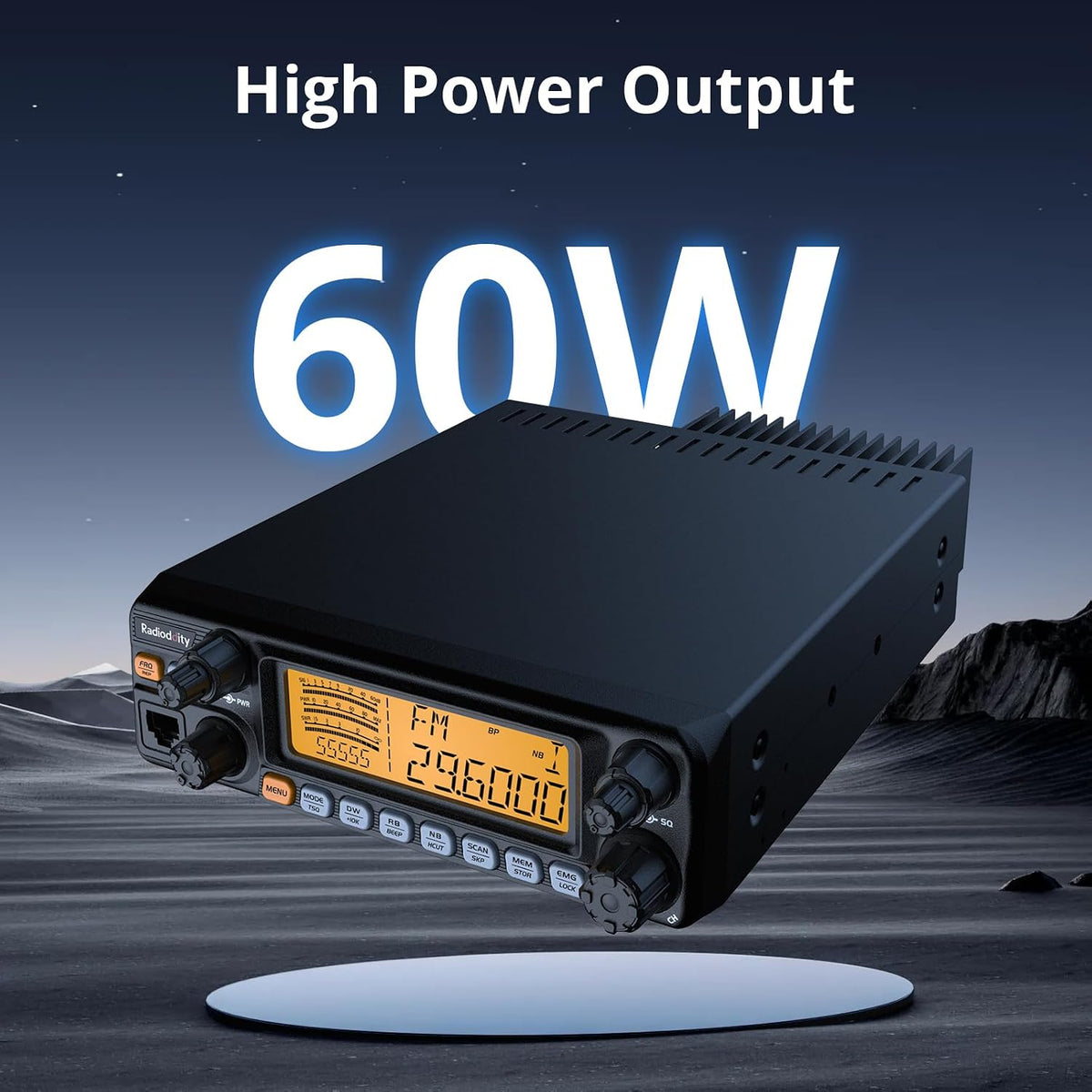

60W High Power: Immerse yourself in the world of connectivity with our 60W high-power transceiver. This device is designed to enhance your communication experience. Whether you are an amateur radio enthusiast, an emergency responder, or an off-road adventurer, the QT60 has everything you need. FCC ID: 2AN62-QT60
Diverse Modes: This radio is packed with multiple transmission modes, catering to various communication scenarios. It includes FM for clear audio, AM for long-range coverage, SSB (LSB & USB) for versatile voice modulation and a PA mode for public addressing.

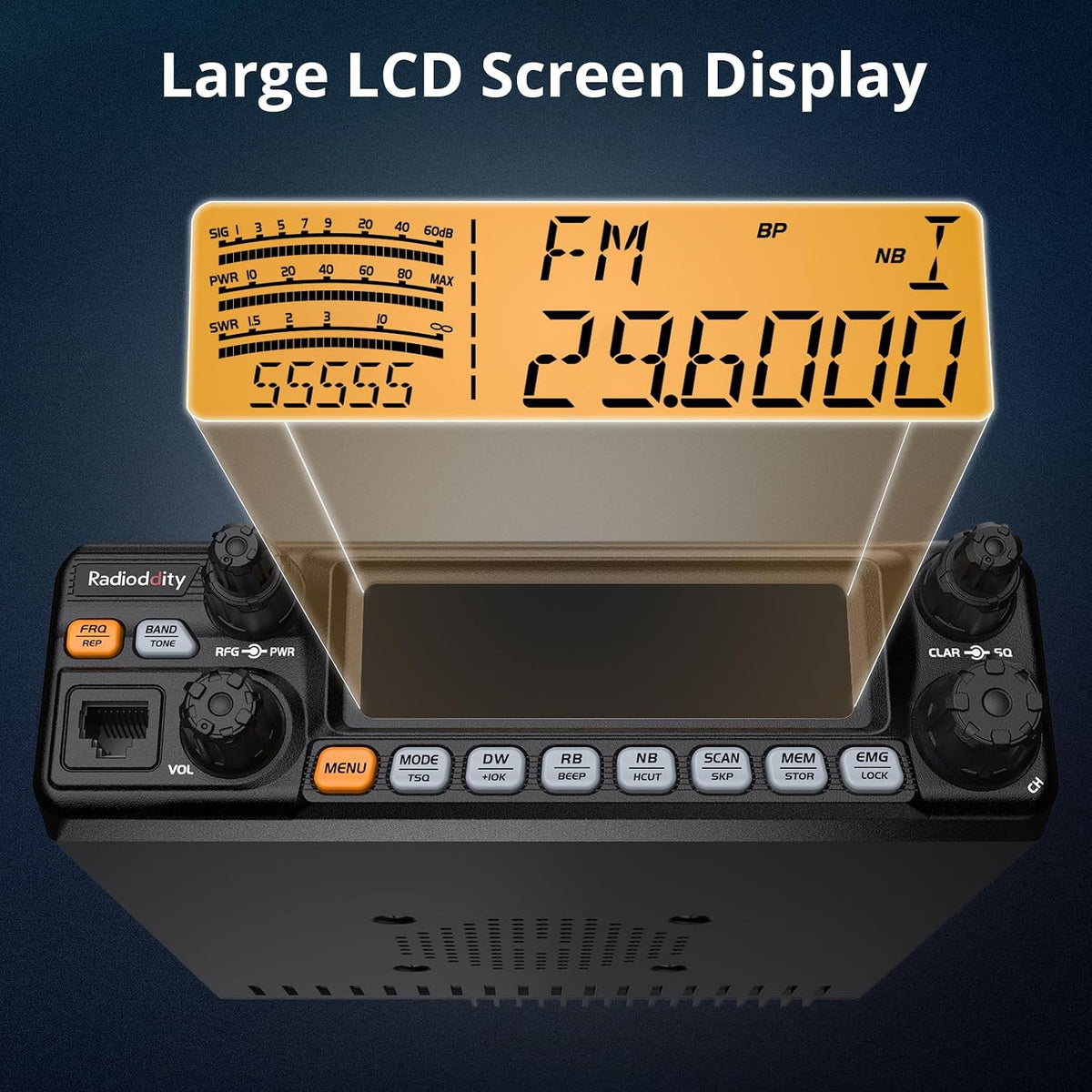

User-Friendly LCD Screen: The generously sized LCD screen grants instant access to the menu choices. The screen and buttons let you view crucial information without distractions, making it ideal for use while driving. Plus, it simplifies setup, eliminating the need for computer programming for most tasks.

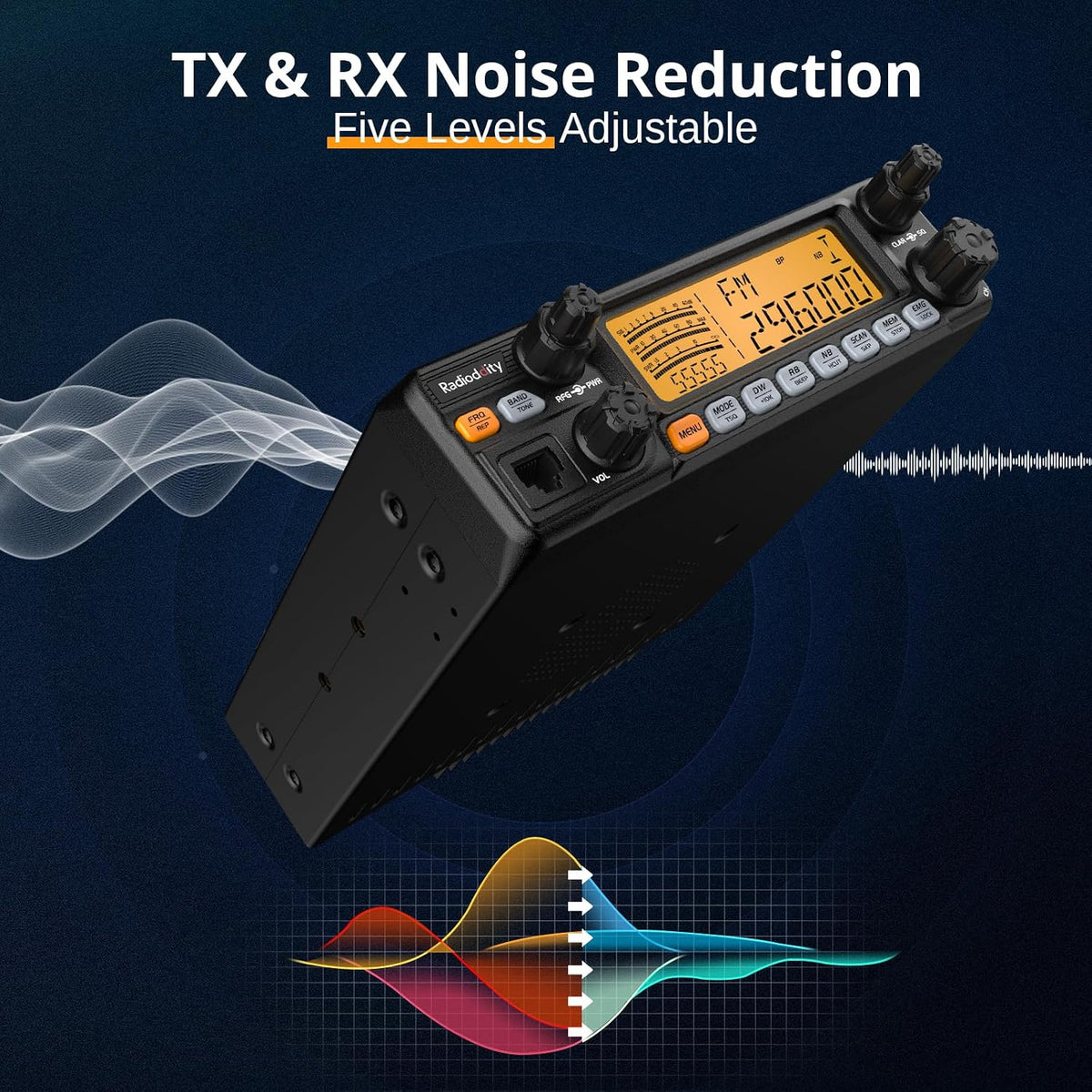

Customizable TX & RX Noise Reduction: With the customizable TX & RX noise reduction feature, you can finely adjust noise reduction with five different levels. This ensures messages are transmitted and received with the utmost clarity, even in the noisiest environments.
ASQ Function: The Automatic Squelch Control (ASQ) function enhances the usability of the radio. ASQ intelligently filters out background noise, ensuring users only hear relevant transmissions. This improves communication efficiency and minimizes distractions during your radio conversations.

âº See more product details

Brand	Radioddity
Color	Black
Number of Channels	200
Special Feature	LCD Display, Noise Reduction, PC programmable
Frequency Range	28.000-29.700MHz
Talking Range Maximum	60 mile
Voltage	13.8 volts
Water Resistance Level	Not Water Resistant
Included Components	NOAA weather alert feature, CTCSS/DCS encoder-decoder, programmable channel scanner
Compatible Devices	External Microphones, External Speakers, Programming Cables, Antennas
