Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More

Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More

$389.70
$389.70
Ga direct naar de productinformatie
Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
  • Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More
Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More

Magewell Director Mini 55110 – Compact Multi-Input Live Production Switcher, Encoder, Streamer & Recorder with 5.5” AMOLED Touchscreen for YouTube, Twitch, Facebook, NDI HX, SRT, RTMP and More

$389.70
$389.70
Combines multi-input switching, graphics, streaming, recording, and monitoring in one device.

Winning Features for Superior Sports Streaming
Turn your camera into a streaming source

Compare Magewell Director Models

Director Mini 55110

Director One 55260

Director Plus 55290

Screen

5.44" AMOLED, 350 nit, 6000:1 contrast ratio

Screen

7" AMOLED, 800nit, 100000:1 contrast ratio

Screen

7" AMOLED, 800nit, 100000:1 contrast ratio

HDMI Inputs / Outputs

2/0

HDMI Inputs / Outputs

2/1

HDMI Inputs / Outputs

4/2

Mic Audio Inputs

1

Mic Audio Inputs

1

Mic Audio Inputs

2

Show Resolution & Max Bitrate

1080p; 30 Mbps

Show Resolution & Max Bitrate

1080p; 30 Mbps

Show Resolution & Max Bitrate

4K, 1440p, 1080p; 120 Mbps

Network

WiFi 5; 1Gbps Ethernet

Network

WiFi 5; 1Gbps Ethernet; 4G

Network

WiFi 6E; 2.5Gbps Ethernet; 5G

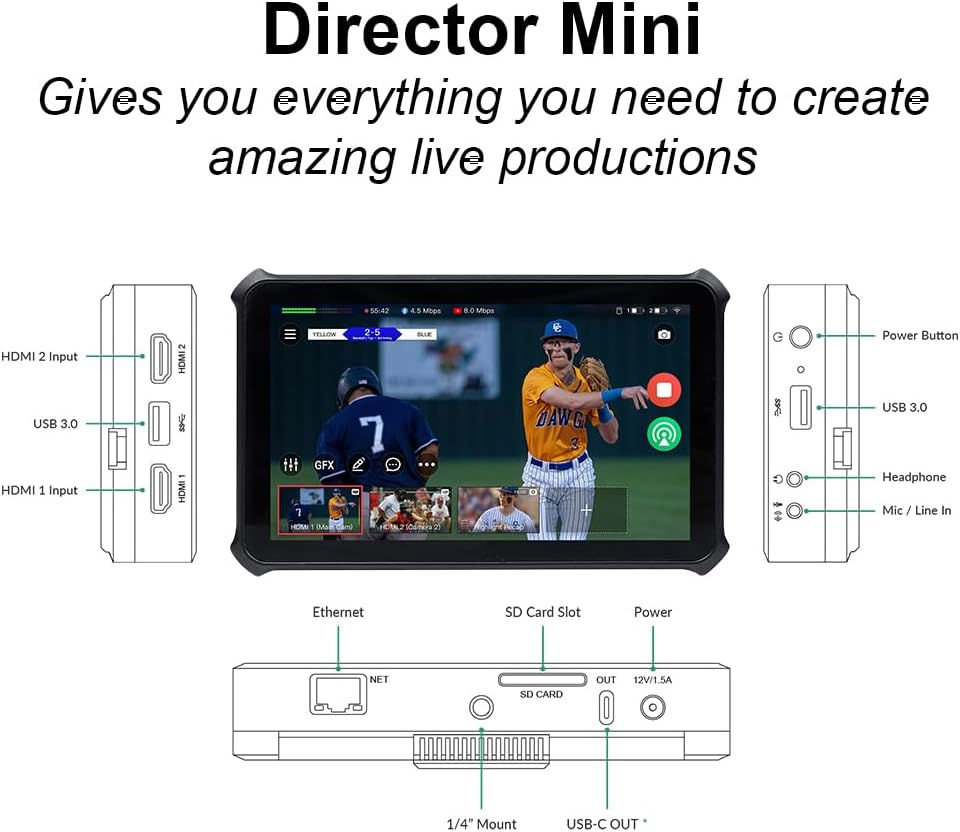

Specifications

Screen 5.44" AMOLED; 1920 x 1080; 8-bit, 60Hz; 350nit; 6000:1 contrast ratio; Capacitive touchscreen; Anti-fingerprint coating
Video Input 2x HDMI 2.0; 2x USB 3.0 Type-A; 1x USB 3.0 Type-C; Phone Camera via LAN/Wi-Fi; SRT Caller/Listener; RTMP Pull/Push; RTSP, NDI stream.
Audio Input Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit; Audio input from HDMI port: 2-channel, 48 KHz, 16-bit; Audio input from USB port: 2-channel, 48 KHz, 16-bit; Audio input from Bluetooth device: 2-channel, 48 KHz, 16-bit; Audio input from phone; Audio from SRT stream; Audio from RTMP stream; Audio from RTSP stream; Audio from NDI stream; Audio embedded in video files; Audio from webpages; Background music (BGM): MP3, M4A, WAV files; Audio from GFX: webpage, NDI, video
Video Ouput Codec: H.264, H.265; Up to 1080p60; NDI HX3: Up to 62.0Mbps, down to 1.5Mbps; Others: up to 30.0Mbps, down to 256kpbs. USB-C 3.0 x 1; Output mode: DP-OUT, UVC 1.1/UAC 1.0; Up to 1080p60; Sampling format: RGB24, YUYV, NV12
Audio Output Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps; Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit; Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit; Audio output via USB-C port: 2-channel, 48 KHz, 16-bit; Audio output via USB-A port: 2-channel, 48 KHz, 16-bit/24-bit/32-bit
Network Ethernet: 1x RJ45 port, 1Gbps; WiFi: 2.4G/5G, Station and Hotspot modes supported; Cellular: USB modem supported (not supplied); Bluetooth 5.0; Supports network bonding; Supports USB tethering to share the Internet data connection of a mobile phone.
Storage Local storage: 64 GB; SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
Dimensions 5.8"x 3.6" x 1.2" (147.2 mm x 90 mm x 28.5 mm); 0.89lb (404g)
  • All-in-One Live Production System – Combines multi-source switching, encoding, recording, monitoring, and streaming in a compact, standalone device—no external PC required.
  • Flexible Multi-Source Inputs – Supports up to 2× HDMI, 2× USB-A, and up to 3 simultaneous IP sources including SRT, RTMP, RTSP, and NDI HX, plus media files and mobile camera inputs.
  • Integrated AMOLED Touchscreen – Built-in 5.44″ capacitive AMOLED display enables intuitive scene control, previewing, and monitoring directly on the device.
  • Professional Streaming & Recording – Hardware encoding supports H.264 and H.265 up to 1080p60, with adjustable bitrates and multi-destination streaming outputs.
  • Flexible Recording Options – Record programs and sources directly to SD cards or internal storage, with support for simultaneous streaming and recording workflows.
  • Advanced Production Tools – Create scenes with live video, graphics, media, webpages, chroma key, timers, scoreboards, and overlays for polished broadcasts.

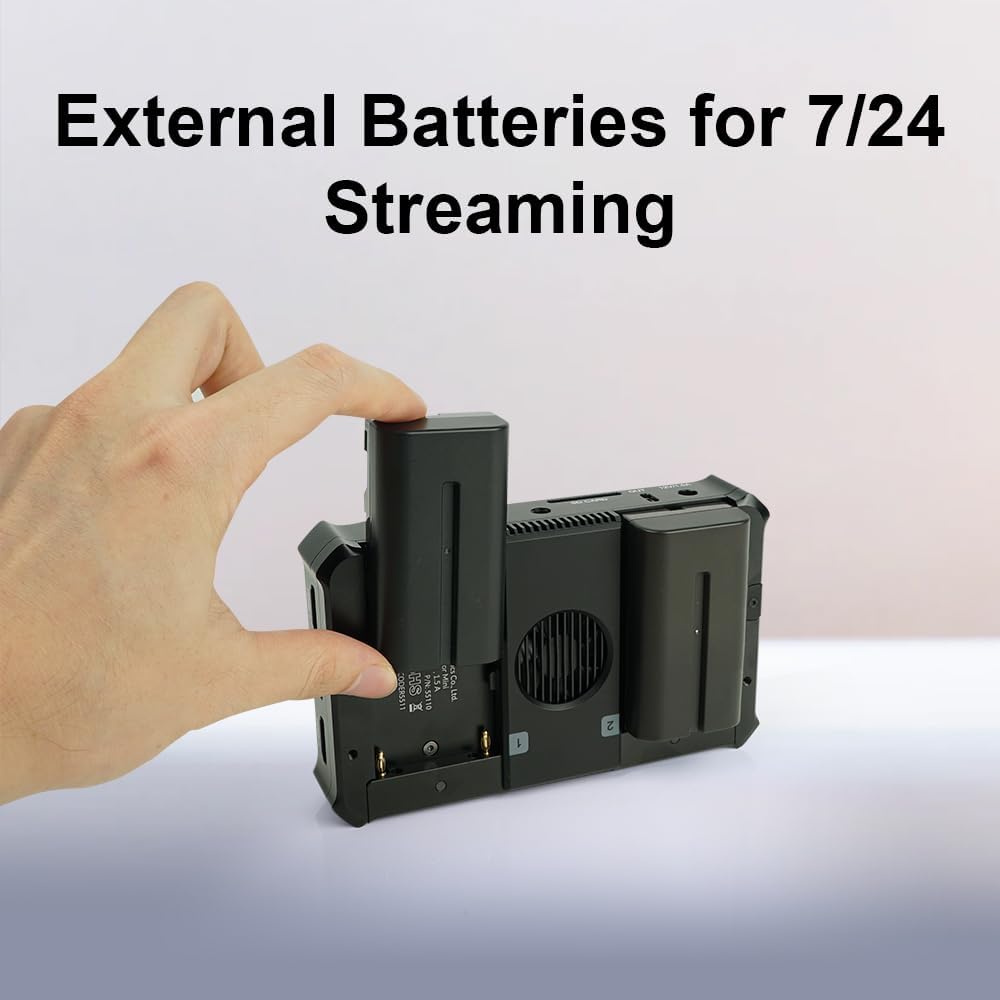

  • Multiple Power Options for Mobility – Supports DC input and dual hot-swappable NP-F battery slots, allowing continuous operation in mobile and field-production environments.
  • Wired & Wireless Connectivity – Ethernet and dual-band Wi-Fi support reliable streaming and remote sources, ideal for mobile or fixed production environments. Supports cellular connectivity via USB modems (not included).
› See more product details
