Blackmagic Design Studio 4K Pro G2 Live Production Camera (CINSTUDMFT/G24PDFG2)

$512.70

Applications

Name: Blackmagic Design Studio 4K Pro G2 Live Production Camera (CINSTUDMFT/G24PDFG2)
Brand: My Store
SKU: B0BWQ3H6BD
Price: 512.70 USD
Availability: InStock

Studio

Designed for professional studio setups, the 4K Pro G2 offers advanced connectivity, crisp image quality, and seamless integration.

Houses of Worship

Deliver stunning 4K live visuals in houses of worship with pro broadcast features, low-light performance, and seamless AV system integration.

Concerts

Perfect for concerts, this 4K studio camera delivers cinematic live footage with powerful broadcast tools and great performance in low-light settings.

Sports

Capture fast-paced sports action in stunning 4K with pro broadcast features, and advanced connectivity.

Compatible with Popular Photographic Lenses

As photographic lenses are designed to handle high resolutions and are mass produced, they're great for high end television use. The MFT and EF lens mounts allow you to choose from a massive range of lenses from a wide range of different manufacturers.

Physical and Digital Controls

Blackmagic Design OS

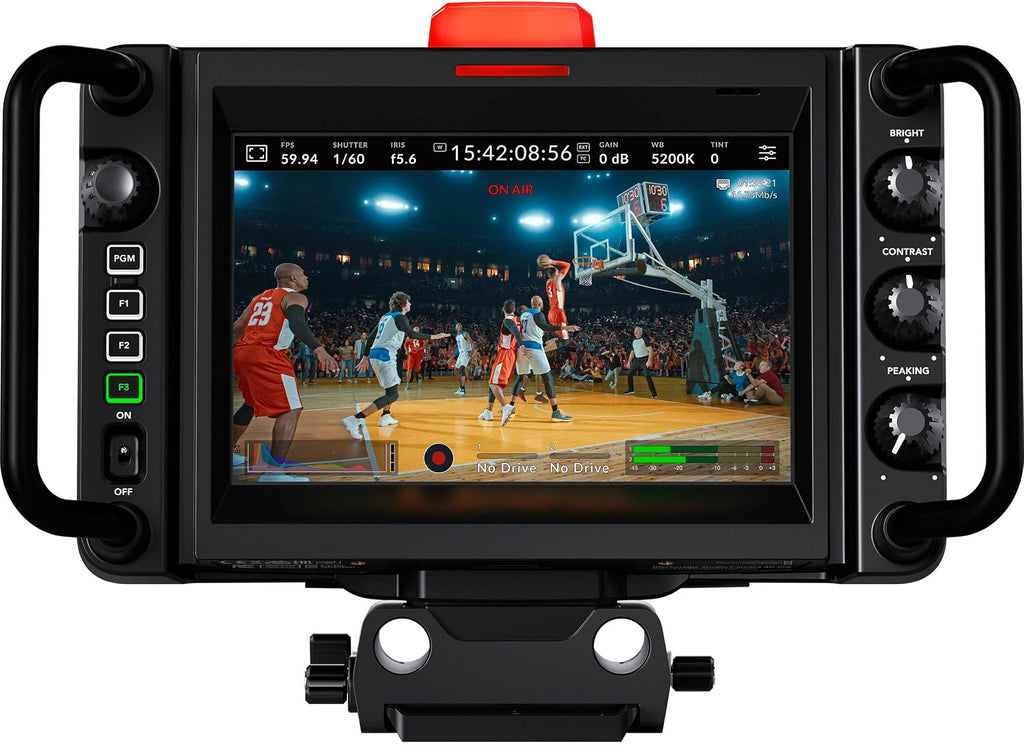

The Blackmagic Design Studio Camera 6K Pro runs on the intuitive Blackmagic OS, offering a touchscreen interface for fast access to camera settings, focus tools, and LUTs. Designed for live production, it allows seamless control over camera functions, including color balance, audio levels, and network settings.

Blackmagic Design Studio Cameras

4K Plus G2

4K Pro G2

6K Pro

Sensor Size

17.78mm x 10mm (Four Thirds)

Sensor Size

17.78mm x 10mm (Four Thirds)

Sensor Size

23.10mm x 12.99mm (Super 35)

Lens Mount

Active MFT Mount

Lens Mount

Active MFT Mount

Lens Mount

Active EF Mount

Screen Brightness

600 nits

Screen Brightness

2000 nits

Screen Brightness

2000 nits

Live Streaming

XLR Audio

Technical Specifications

SDI Rates	1.5G, 3G, 6G, 12G
HDMI 2.0 Video Outputs	1
Analog Audio Input	2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog Audio Output	1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic.
Reference Inputs	Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. Program SDI Input on camera or on Blackmagic Studio Converter.
SDI Audio Output	2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Remote Control	Remote camera control over SDI, HDMI or Ethernet.
Computer Interface	2 x USB TypeâC 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USBâC Port A.

Microphone / Built-In Speaker	Integrated stereo microphone. / 1x mono speaker
HD Video Standards	1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Storage Type	2 x USBâC 3.1 Gen 1 expansion ports for external media.
Live Tally Indicator/Talkback	1 x front facing for talent, 1 x rear facing for operator. / SDI Channels 15 and 16.
Direct Streaming	Blackmagic Studio Camera 4K Pro G2 supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USBâC.
Streaming Platforms	ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.

PERFECT FOR BROADCAST: Designed as the perfect studio camera for ATEM switchers, this model has a 4K sensor up to 25,600 ISO, MFT lens mount, HDMI out, SDI connections, 7" HDR LCD with sunshade, built-in
ADVANCED FEATURES: Light, miniaturized carbon composite body; Dual native ISO of 400 and 3200; 13 stops of dynamic range; Blackmagic RAW recording; Talkback; Tally; Remote camera control; LWS tripod mount (included) and more!
DESIGNED FOR LIVE PRODUCTION: The 4K Studio Pro G2 Camera is perfect for chat shows, television production, broadcast news, sports, education, conference presentations, concerts, and even weddings!

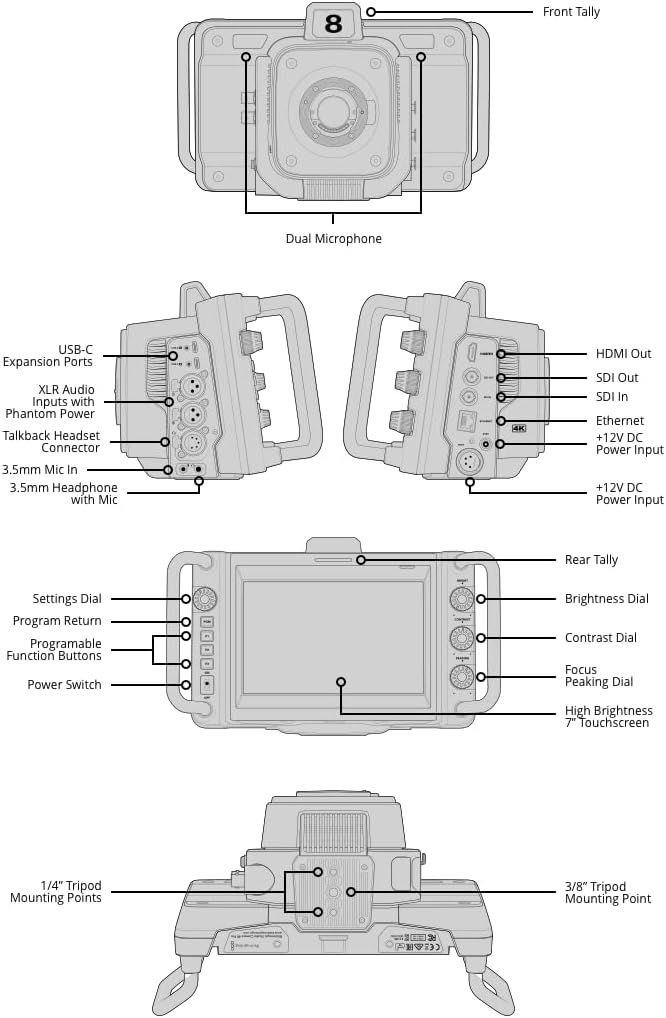

POWERFUL BROADCAST CONNECTIONS: 1 x HDMI 2.0 Output; 1 x 12G-SDI Input; 1 x 12G-SDI Output; 2 x XLR Audio Inputs; 1 x XLR Audio Output; 10G Ethernet; 1 x 3.5mm Audio Input; 1 x 3.5mm Audio Output; 2 x USB 3.1 ports for recording or Blackmagic accessories (Zoom Demand and/or Focus Demand â not included).
INCLUDES: Blackmagic Design 4K Pro G2 Camera (CINSTUDMFT/G24PDFG2), Sun Hood, Turret Dust Cap, Universal Power Supply with International Socket Adapters, 15mm LWS Tripod Mount

âº See more product details

Brand	Blackmagic Design
Photo Sensor Technology	CMOS
Video Capture Resolution	4K
Maximum Focal Length	60 centimeters
Maximum Aperture	1.8 f_stop
Flash Memory Type	SD
Video Capture Format	Blackmagic RAW
Supported Audio Format	WAV, AAC, MP3
Screen Size	7 inches
Connectivity Technology	HDMI
