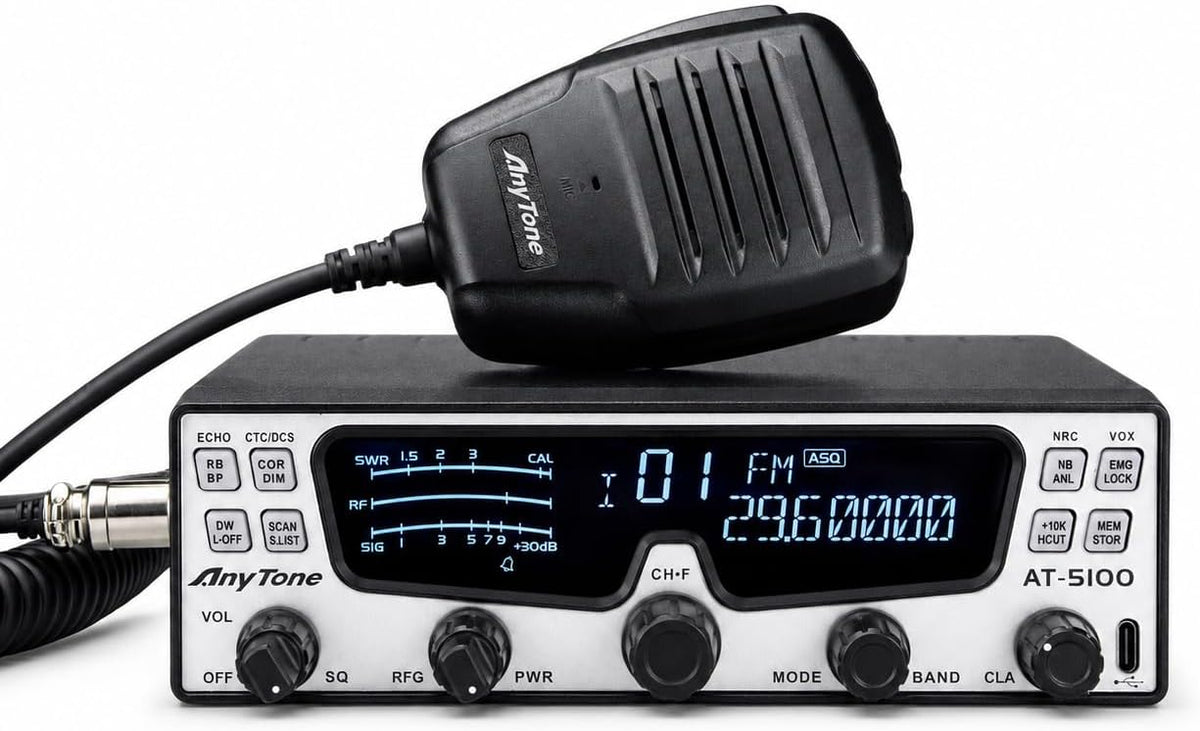

Name: AnyTone AT-5100 10 Meter Amateur Radio, SSB/CW/AM/FM Mobile Transceiver
Brand: My Store
SKU: B0HCNY72RZ
Price: 53.70 USD
Availability: InStock

AnyTone AT-5100 10 Meter Amateur Radio, SSB/CW/AM/FM Mobile Transceiver

$53.70

VFO & 7 Tuning & RF Gain
VFO & PROGRAMMING
SWR DISPLAY & PROTECTION

Is the AnyTone AT-5100 a CB radio?

No. The AT-5100 is designed for 10-meter amateur radio operation, not CB service. An appropriate amateur radio license is required to transmit in the United States.
What modes and output power does it support?

It supports AM, FM, USB, LSB, CW and PA functions. Output reaches up to 30W on FM and 30W PEP on SSB, giving operators flexible choices for voice and CW operation.
Does the AT-5100 provide noise reduction?

Yes. Its 5-level TX and RX NRC helps reduce unwanted background noise in both transmitted and received audio. The level can be adjusted to suit changing operating conditions.
Does the built-in SWR function tune the antenna automatically?

No. The SWR display helps operators monitor antenna matching, while SWR protection helps protect the radio under high-SWR conditions. It does not replace an external antenna tuner.
Can it be used as both a mobile and base-station radio?

Yes. Its compact design works well in a vehicle or home radio station. A suitable DC power source and a properly matched 10-meter antenna are required for the selected installation.

Frequency Range	28.000â29.700 MHz
Operating Modes	AM / FM / USB / LSB / CW / PA

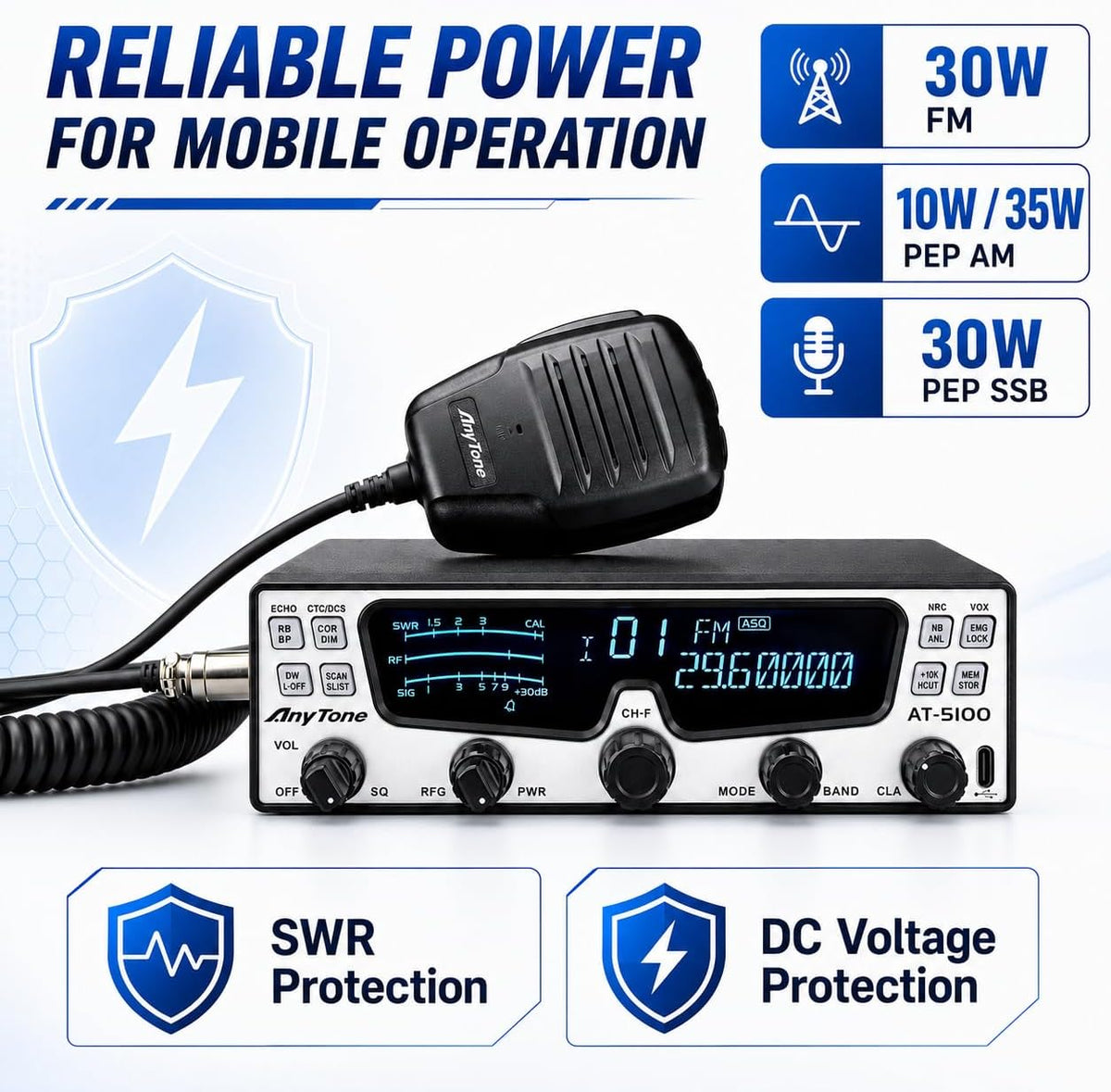

RF Output Power	FM 30 W / SSB 30 W PEP / AM 10 W (35 W PEP)
Frequency Bands	A / B / C / D / E / F / G / H / I + VFO
Programmable Channels	40 Channels per Band
Frequency Steps	10 Hz / 100 Hz / 1 kHz / 5 kHz / 10 kHz / 100 kHz / 1 MHz
Frequency Control	PLL Synthesizer
Frequency Stability	Â±5 ppm

Antenna Impedance	50 Ohms
Antenna Connector	UHF-Type (SO-239)
Input Voltage	12 V DC
Maximum Current Draw	10 A with Modulation
Receiver Sensitivity	SSB 0.25 Î¼V / AM 1.0 Î¼V / FM 1.0 Î¼V
Operating Temperature	â4Â°F to +131Â°F
Dimensions	7.36 Ã 6.89 Ã 2.09 in (L Ã W Ã H)
Weight: Approx	3.75 lb

TRUE 10 METER MULTI-MODE RADIO:Experience flexible amateur radio communication with support for AM, FM, USB, LSB, and CW modes across the 28.000â29.700MHz 10 meter band. Designed for licensed operators who want multiple communication options in one radio, from everyday contacts to long-distance DX communication and emergency preparedness
POWERFUL MOBILE COMMUNICATION PERFORMANCE:Built for serious mobile operators, the AT-5100 provides reliable transmission performance for trucks, Jeeps, SUVs, RVs, and outdoor communication setups. Whether traveling highways, exploring remote trails, or operating in areas with limited cellular coverage, this radio delivers dependable long-range communication
ADVANCED TX/RX NOISE REDUCTION:Featuring 5-level TX and RX noise reduction, the AT-5100 helps minimize unwanted interference from engine noise, road vibration, and surrounding environments. Enjoy cleaner voice transmission and improved listening clarity during demanding mobile operation

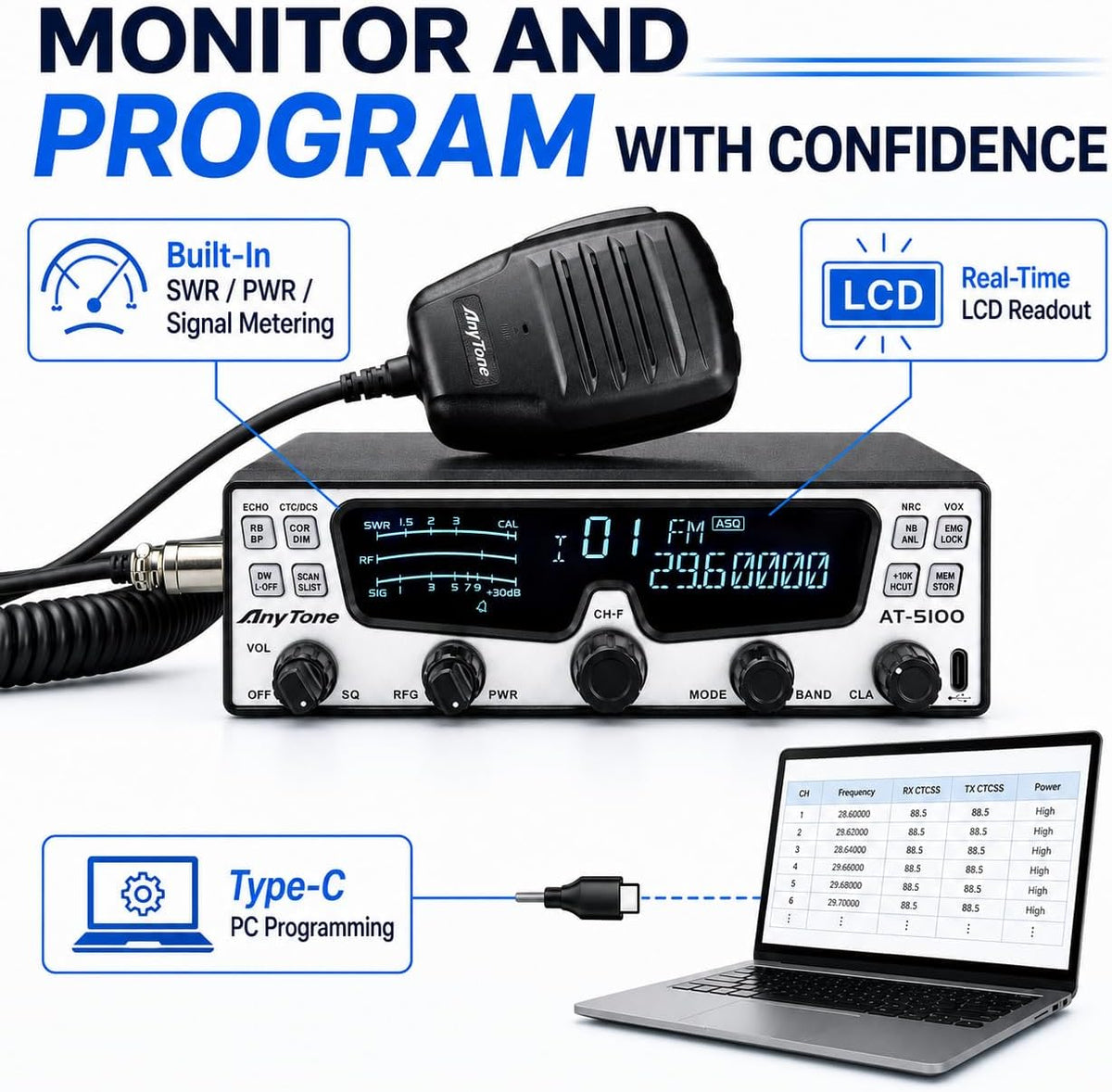

PROFESSIONAL CONTROL WITH VFO, MEMORY & PC PROGRAMMING:Customize your communication setup with VFO operation, memory channels, CTCSS/DCS signaling, and PC programming support. Easily organize frequencies, adjust settings, and create a personalized operating experience for different communication needs

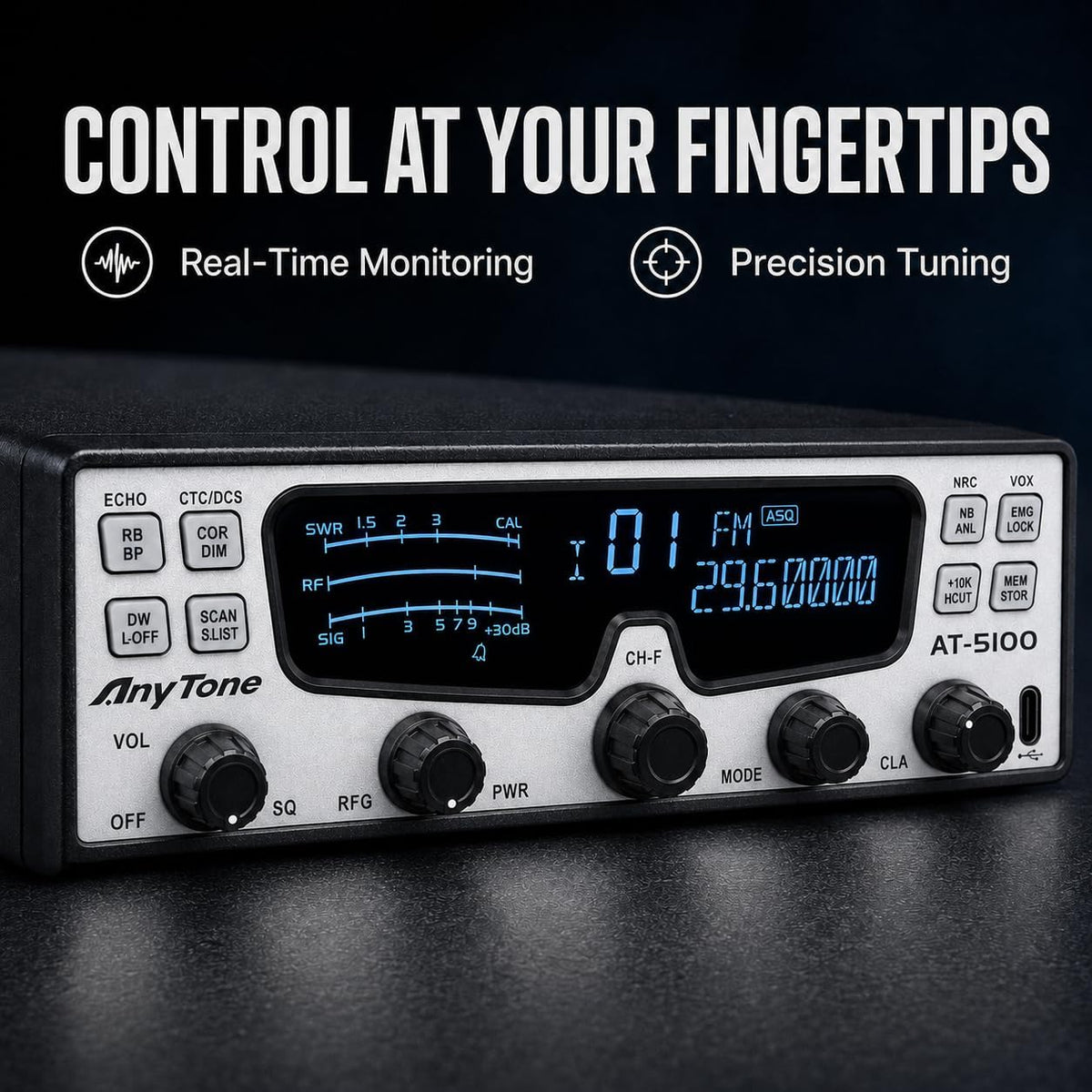

REAL-TIME LCD MONITORING & PRECISION OPERATION:The large LCD interface provides clear visibility of frequency information, signal strength, and SWR monitoring status. Combined with intuitive controls and durable construction, the AT-5100 gives operators confident control during every transmission

âº See more product details

Brand	AnyTone
Color	Black
Number of Channels	40
Special Feature	ssb cb radio
Frequency Range	28.000â29.700MHz
Talking Range Maximum	5 mile
Voltage	7.4 volts
Water Resistance Level	Not Water Resistant
Product Dimensions	7.4"D x 6.9"W x 2.1"H
Number of Batteries	Nonstandard Battery batteries required.
