AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC

AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC

$39.00
$39.00
Ga direct naar de productinformatie
AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
  • AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC
AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC

AnyTone AT-500M II CB Radio Kit with 27MHz Magnetic Antenna, AM/FM, NRC

$39.00
$39.00
CB Radio
CB radio mobile radio
cb Mobile radio
CB-radio

  • Yes. The radio combines NRC digital noise cancelling with NB/ANL filtering to reduce engine noise, ignition interference, and road vibration, improving voice clarity during both transmit and receive in high-noise vehicle cabins

  • The kit includes a 27 MHz magnetic mount antenna with an installed height of about 1 meter (≈39.4 inches), designed specifically for CB frequency operation and suitable for metal vehicle roofs or trunks

  • Yes. The VOX function allows automatic transmission when speech is detected, with adjustable sensitivity to prevent false triggering from engine noise or wind, supporting safer hands-free communication while driving

  • The radio supports 12 V and 24 V vehicle power systems, allowing installation in standard passenger vehicles, off-road rigs, and commercial trucks without requiring an external voltage converter

  • For best performance, SWR tuning is recommended after installation. Proper ground contact and antenna placement help ensure efficient signal transmission and protect the CB radio from reflected power

Frequency Range 26.965-27.405MHz
Modulation Mode AM/FM
Receiver Sensitivity < 1 µV for 10 dB (S+N)/N
Antenna Connector SO-239 (UHF)
Input Voltage 12V / 24V DC
Audio Output Power 2 Watts @ 8Ω (<10% distortion)
Operating Temperature Range -4°F to 122°F
Adjacent Channel Rejection 60 dB
Image Rejection 70 dB
Dimensions 7.28 × 4.88 × 1.50 inches
Current Drain – Transmit 3 Amps (Max)
Frequency Tolerance ±5 ppm
Weight 1.37 lb
Output Impedance 50 Ohms
Frequency Response – Audio 300 – 3000 Hz
Current Drain – Receive 0.3 Amps (Squelched)

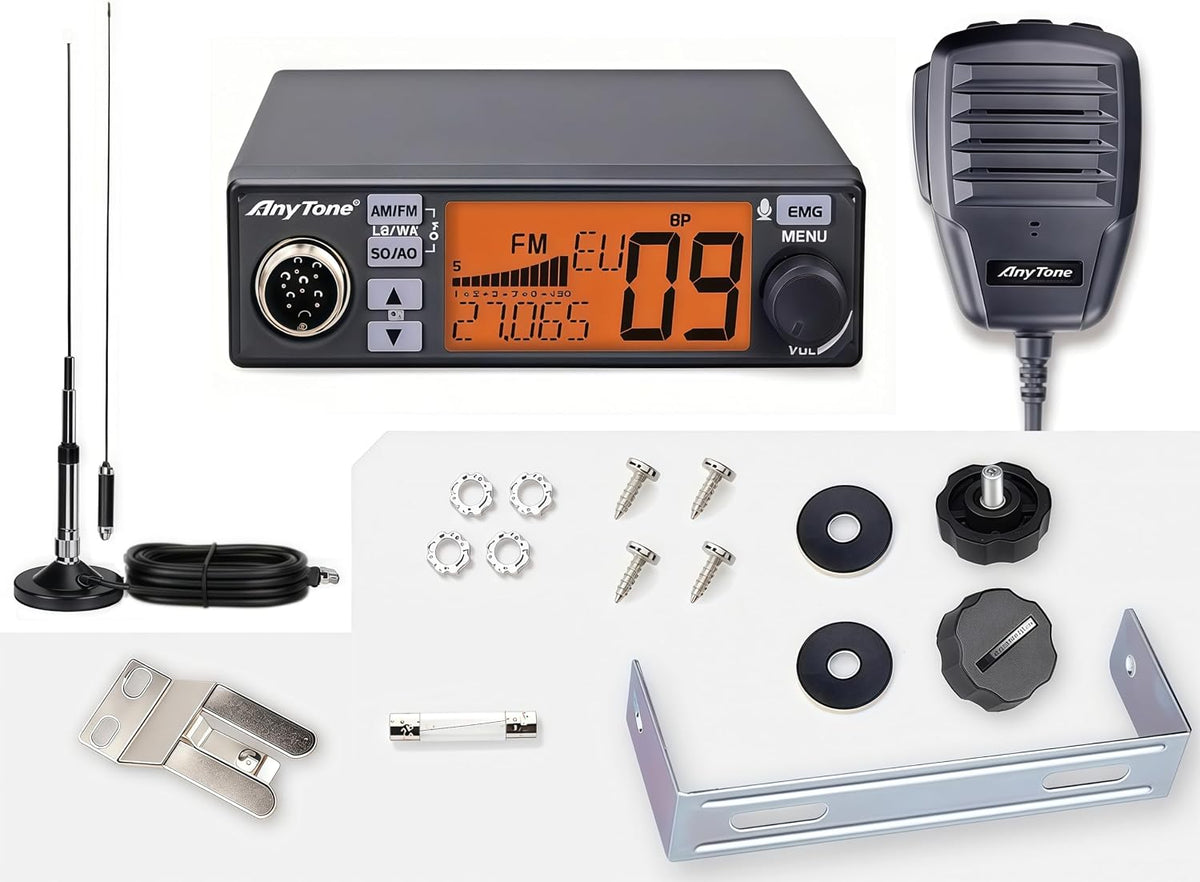

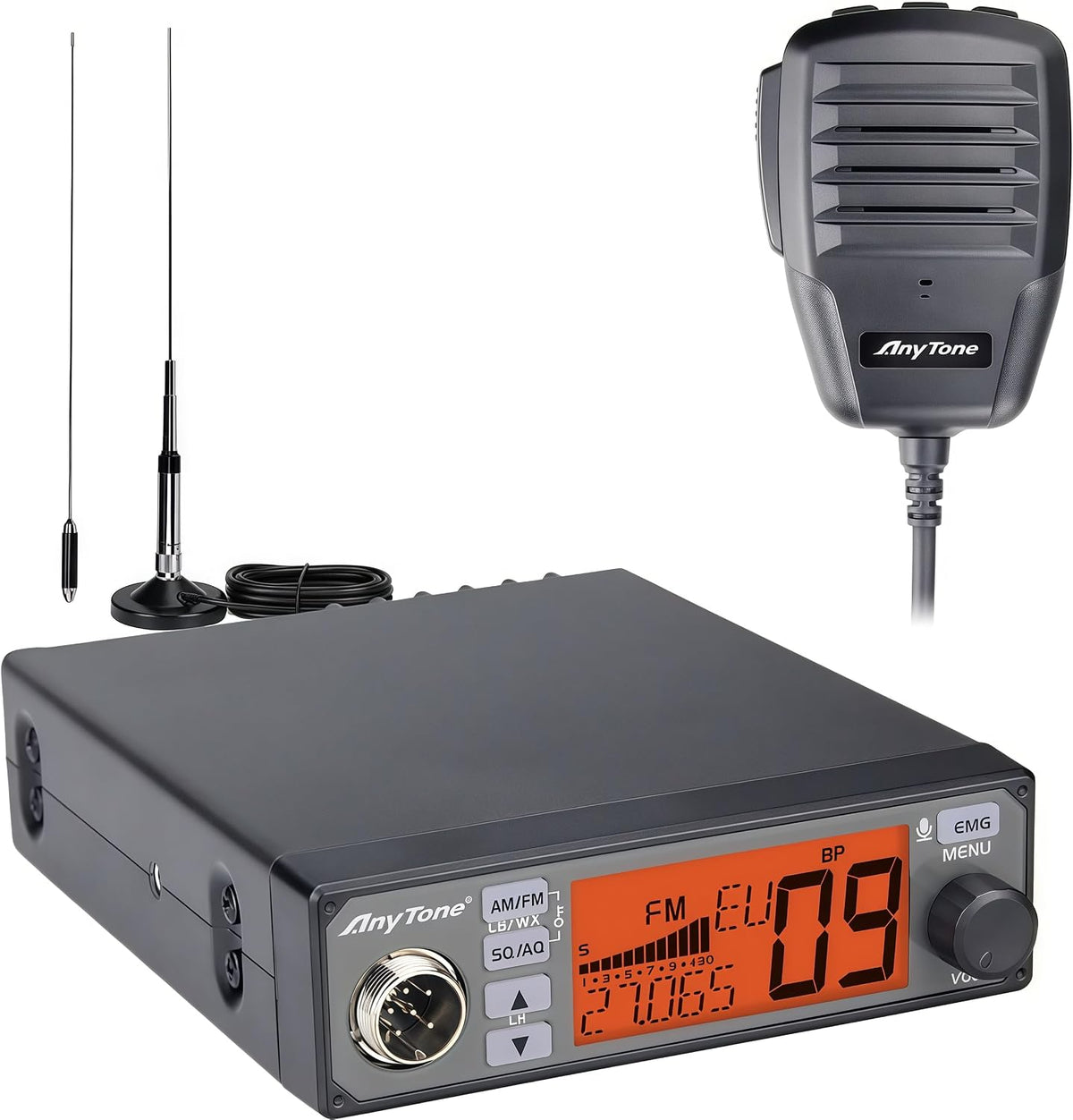

  • COMPLETE CB RADIO & ANTENNA KIT: Includes the AT-500M II mobile CB radio and a 27 MHz magnetic-mount antenna for a more complete vehicle setup. The antenna features a 39.4-inch vertical whip, 5-meter cable, 2.0 dBi gain, 50-ohm impedance, and an SL16.J connector for the radio’s SO-239 antenna jack
  • 40-CHANNEL 4W AM/FM CB RADIO: Covers the standard 26.965–27.405 MHz CB band with all 40 channels and selectable AM or FM operation. Delivers up to 4W output in both modes for everyday mobile communication in trucks, pickups, off-road vehicles, RVs, and work vehicles

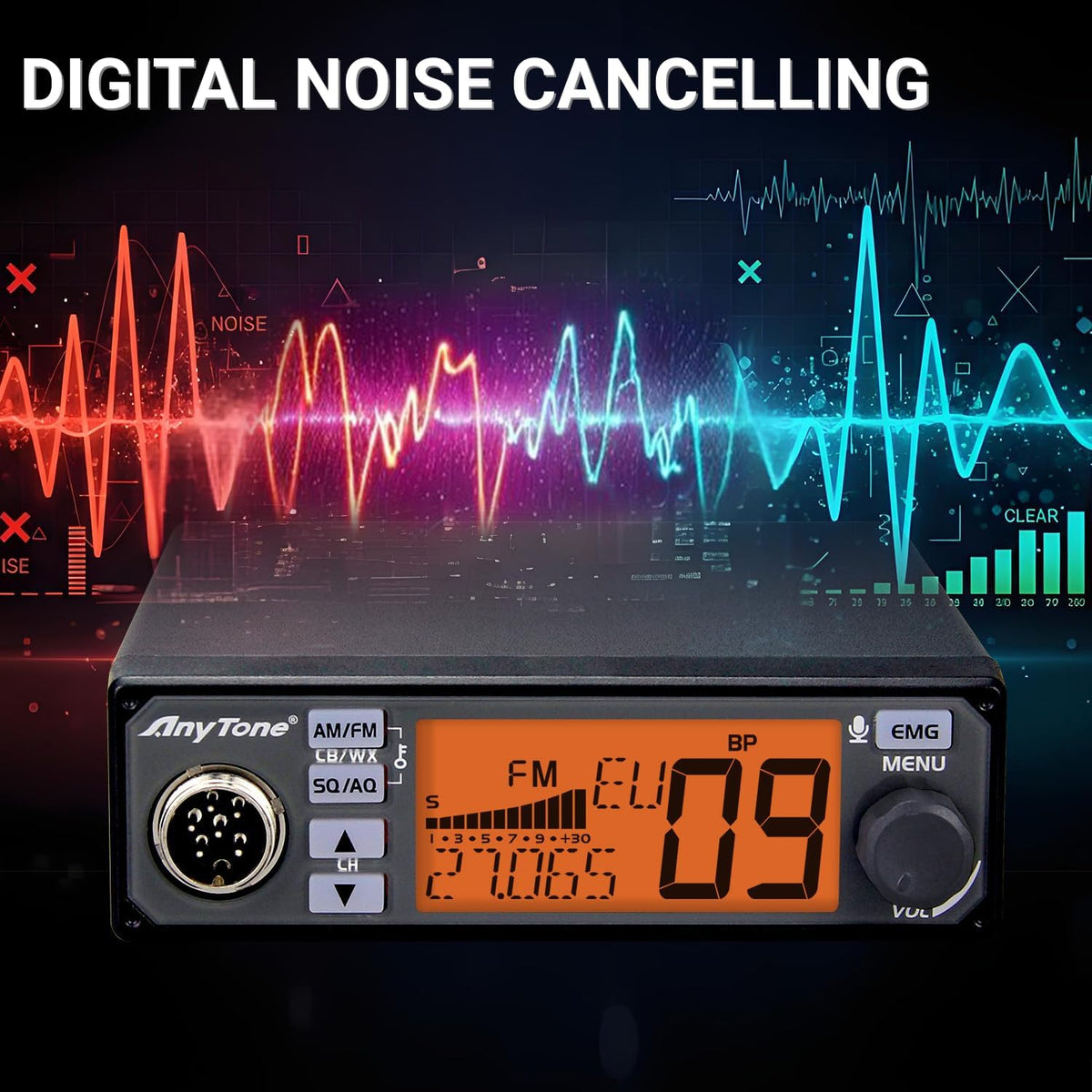

  • 5-LEVEL TX/RX NRC: Separate transmit and receive digital noise reduction helps reduce steady engine, road, wind, and cabin noise. Choose from five NRC levels for TX and RX to improve speech intelligibility in changing mobile environments

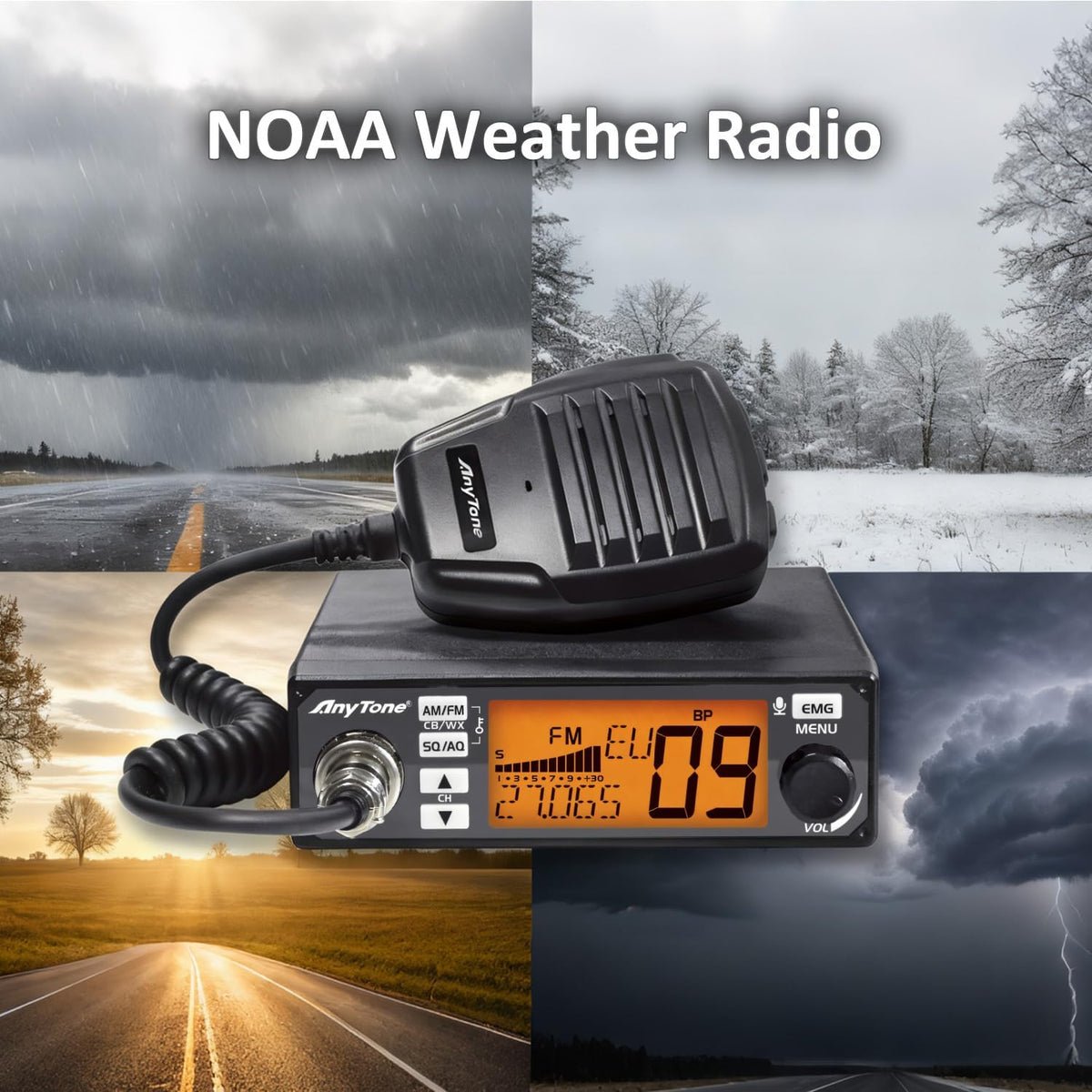

  • WX WEATHER RECEIVE & SCAN: Switch from CB mode to WX mode to monitor supported weather-channel broadcasts and scan for active weather signals, helping drivers stay informed about changing conditions along the route
  • VOX, NB/ANL & AUDIO CONTROL: Voice-activated transmit allows operation without continuously holding the PTT, with adjustable sensitivity and delay settings for different cabin environments. NB helps reduce electrical impulse noise, while ANL reduces noise during AM operation. Talkback, microphone gain, RF Gain, and Hi-Cut provide additional audio control
  • 12V/24V VEHICLE COMPATIBILITY: Supports both 12V and 24V DC vehicle electrical systems for installation in passenger vehicles, commercial trucks, agricultural equipment, and off-road rigs. The compact chassis, external speaker jack, SO-239 antenna connection, and included mounting hardware support practical mobile installation
